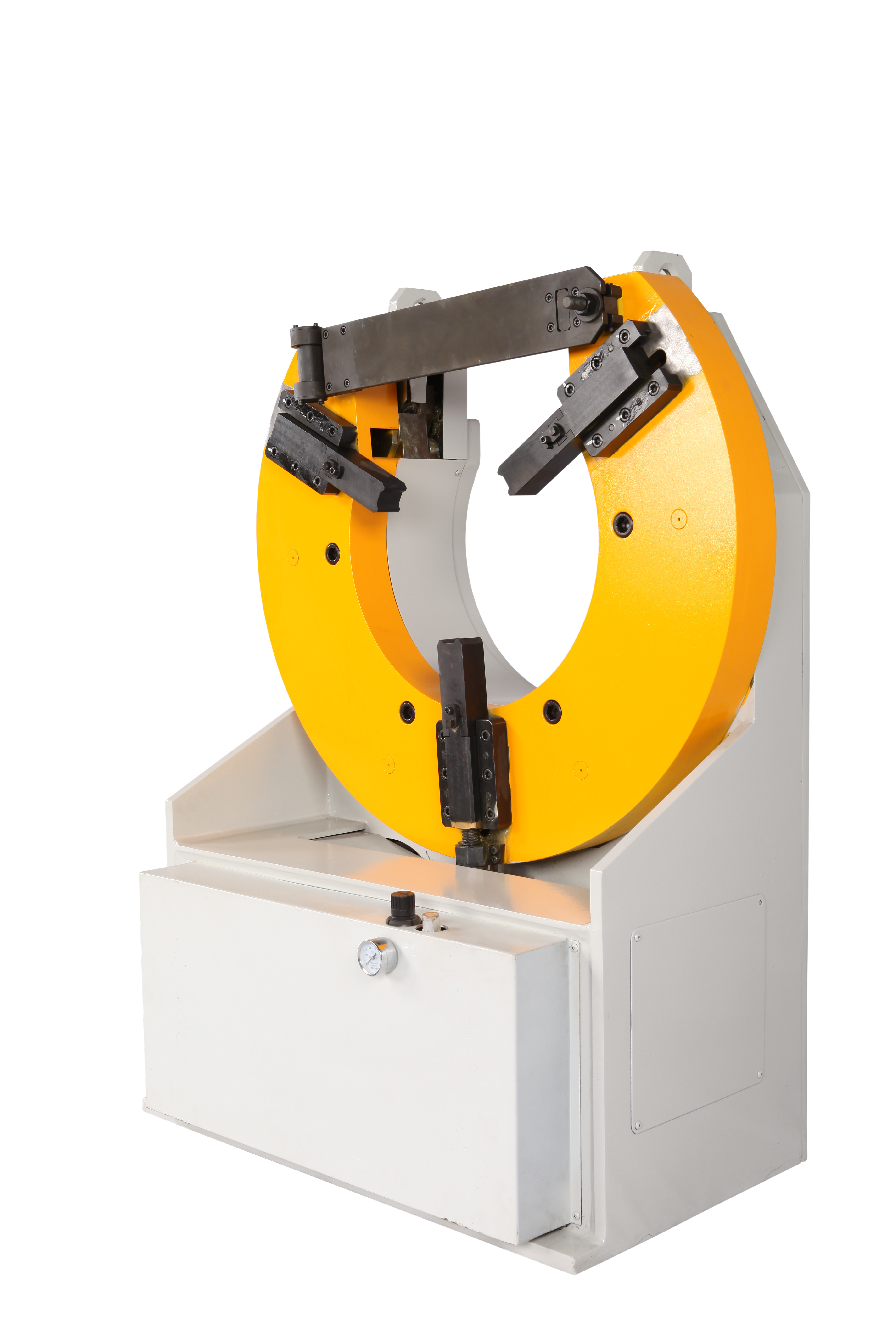

Pipe To Flange/Pipe To Elbow/Pipe To Tee Automatic Welding Station

Name: Pipe To FlangePipe To ElbowPipe To Tee Automatic Welding Station
Brand: HUAHENG
Price: 1 USD

Buy cheap Pipe To Flange/Pipe To Elbow/Pipe To Tee Automatic Welding Station product

Brand Name : HUAHENG

Model Number : KB370

Model : KB370

Max. rotation speed(rpm) : 4.3

Max. torque(N/m) : 800

Diameter : Φ60-Φ370

Power : 1.3kw

Dimension : 774x500x1135mm

Contact Now

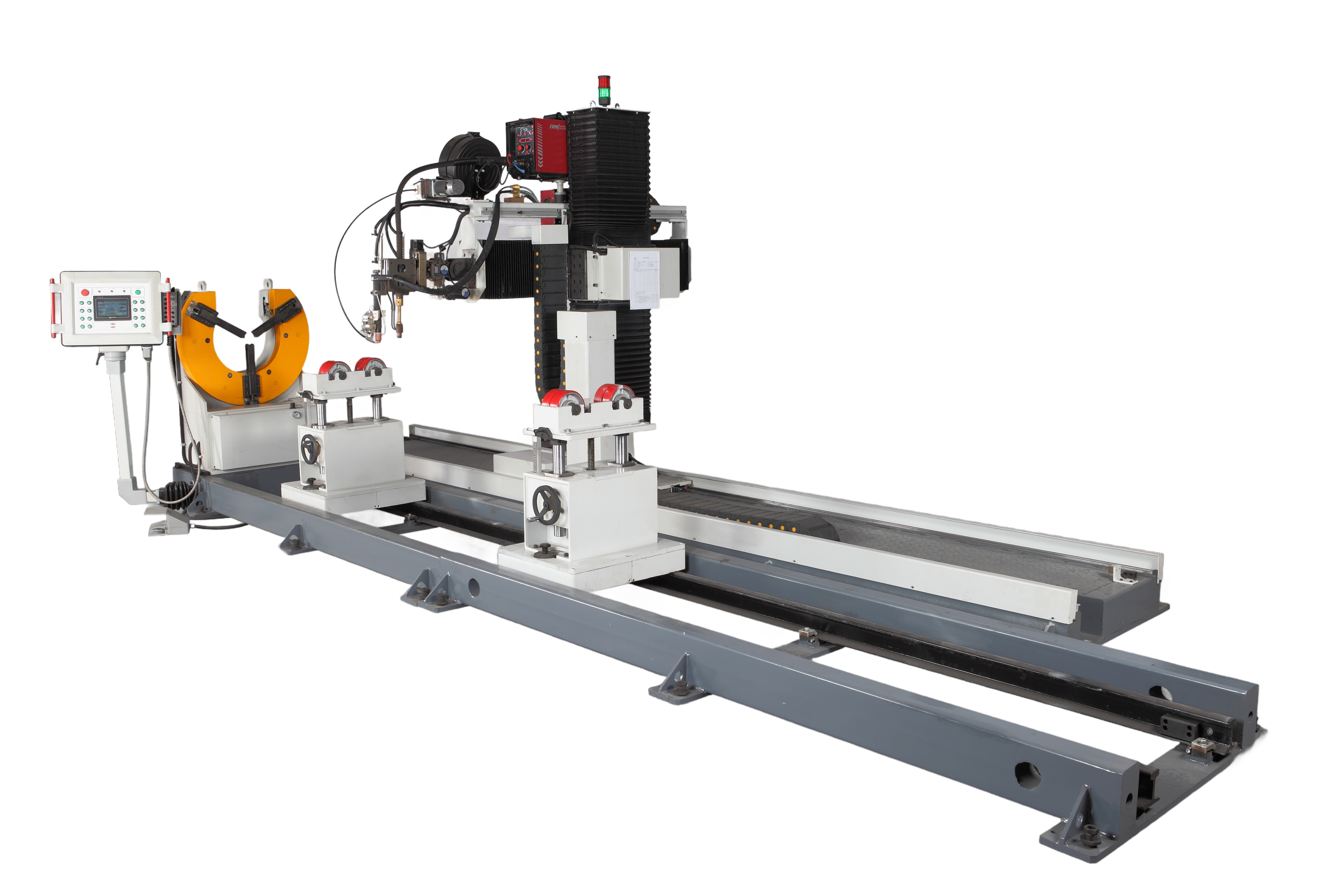

Pipe welding station is used for welding pipe to pipe, pipe to flange, pipe to elbow, pipe to tee etc. It could realize the pipe automatic centering, motorized (manual) clamping, and it could be used for automatic root pass, fill/cap pass with arc voltage control (AVC) monitoring. It could use for fill/cap pass controller (AVC) monitor and so on.

Pipe To Flange/Pipe To Elbow/Pipe To Tee Automatic Welding Station

Model	KB230	KB370	KB500	KB630	KB32
Max rotation speed(rpm)	3.7	4.3	3.5	2	1
Max.torque(N/m)	500	800	4000	5000	10000
Diameter(mm)	Φ34-Φ230	Φ60-Φ370	Φ168-Φ500	Φ219-Φ630	Φ219-Φ820
Payload(kg)	600	600	2000	3000	7500
Power(kw)	1.3	1.3	3.0	4.4	5.5
Center height(mm)	600	780	950	1190	1745
Dimension(LxWxH)(mm)	550x440x830	774x500x1135	1000x630x1420	1750x1200x1945	2918x2200x2000
Clamping	Motorized	Motorized	Motorized	Motorized	Motorized

Patent technology
Avoid axial jumping during the rotation
Avoid radial jumping during the rotation
Easy load and unload by open design
Motorized three-jaw
AC servo motor driven, wide speed adjustment range, quick response, high accuracy
Gear/Chain transmission for high efficiency

Pipe To Flange/Pipe To Elbow/Pipe To Tee Automatic Welding Station

Pipe To Flange/Pipe To Elbow/Pipe To Tee Automatic Welding Station Images
