Integrated Cutting And Beveling Machine Pipe Preparation Line

  • 1
  • 2

Model : CBL-08/CBL-14

Bevel type : U,V, compounding V,counterbore, end beveling function

Tool quantity : Max.4 pcs

Tool bit : Hard alloy bit

Tool bit life time : Long(≥50 cuts)

Cutting speed : 2 min/2 cut (Dn200x12mm)

Automatic unloading length : 600mm( customized)

Fixed length accuracy : 1mm

Contact Now

Many advanced technique to achieve international standard

Reach max.25.4mm thickness

Beveling Efficiency:≤2 mins/two cuts( DN200 SCH40)

Advance tool feed: servo radius feeding

Graphic parameter input programing, less requirement on operation skill

The pipe go through the machine body, clamped automatically; the tool plate start to rotate, finish two cut and bevels in one time

Suitable material: CS, SS, Alloy steel

Bevel type: V bevel

Suitable pipe diameter: DN60-300(Ф60-325mm)

Suitable material: CS, SS, Alloy steel

Pipe wall thickness: 3-25mm

Tool feeding: Radial servo feeding

Driving: electric motor

Pipe Clamping: Adjustable pressure hydraulic clamping chucks pneumatic (hydraulic) clamping

Controlling: digital + PLC + Touch screen

Prevent oxidize by coolant while cutting stainless steel.

Machine center adjustment: suspension system to adjust the center height according to different pipe diameter (suitable to the conveyer line)

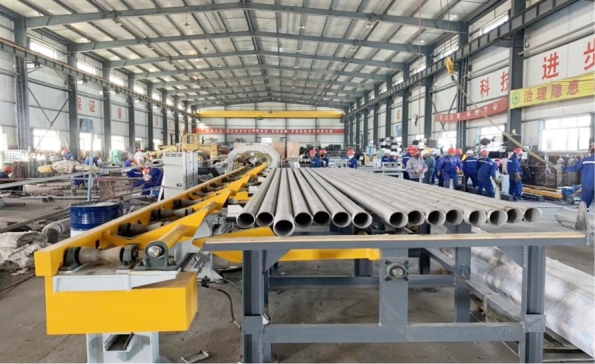

Optional conveyer system and pipe feeding/length measurement system can assembled as production line.



Integrated Cutting And Beveling Machine Pipe Preparation Line

Integrated Cutting And Beveling Machine Pipe Preparation Line

Integrated Cutting And Beveling Machine Pipe Preparation Line

Integrated Cutting And Beveling Machine Pipe Preparation Line

Integrated Cutting And Beveling Machine Pipe Preparation Line
