HL3000-TIG Longitudinal Seam Automatic Welding Machine For Medium and Thin-walled Cylinders

Model : HL3000-TIG

Weld type : Longitudinal seam welding machine

Applicable to : Medium and thin-walled cylinders

Maximum diameter that can be clamped : Φ2000mm

Minimum diameter that can be clamped : Φ1200mm

Contact Now

The Huaheng HL3000-TIG longitudinal seam welding machine is widely used in the welding of products such as food machinery, dyeing and finishing equipment, power switch busbar cylinders, medical machinery, and special material chemical containers. It is mainly targeted at the longitudinal seam welding of medium and thin-walled cylinders less than 3000 mm long.

Parameter	Details
Model	HL3000
Maximum diameter that can be clamped	Φ2000 (mm)
Minimum diameter that can be clamped	Φ1200 (mm)
Maximum thickness that can be clamped	12 (mm)
Minimum thickness that can be clamped	1.0 (mm)

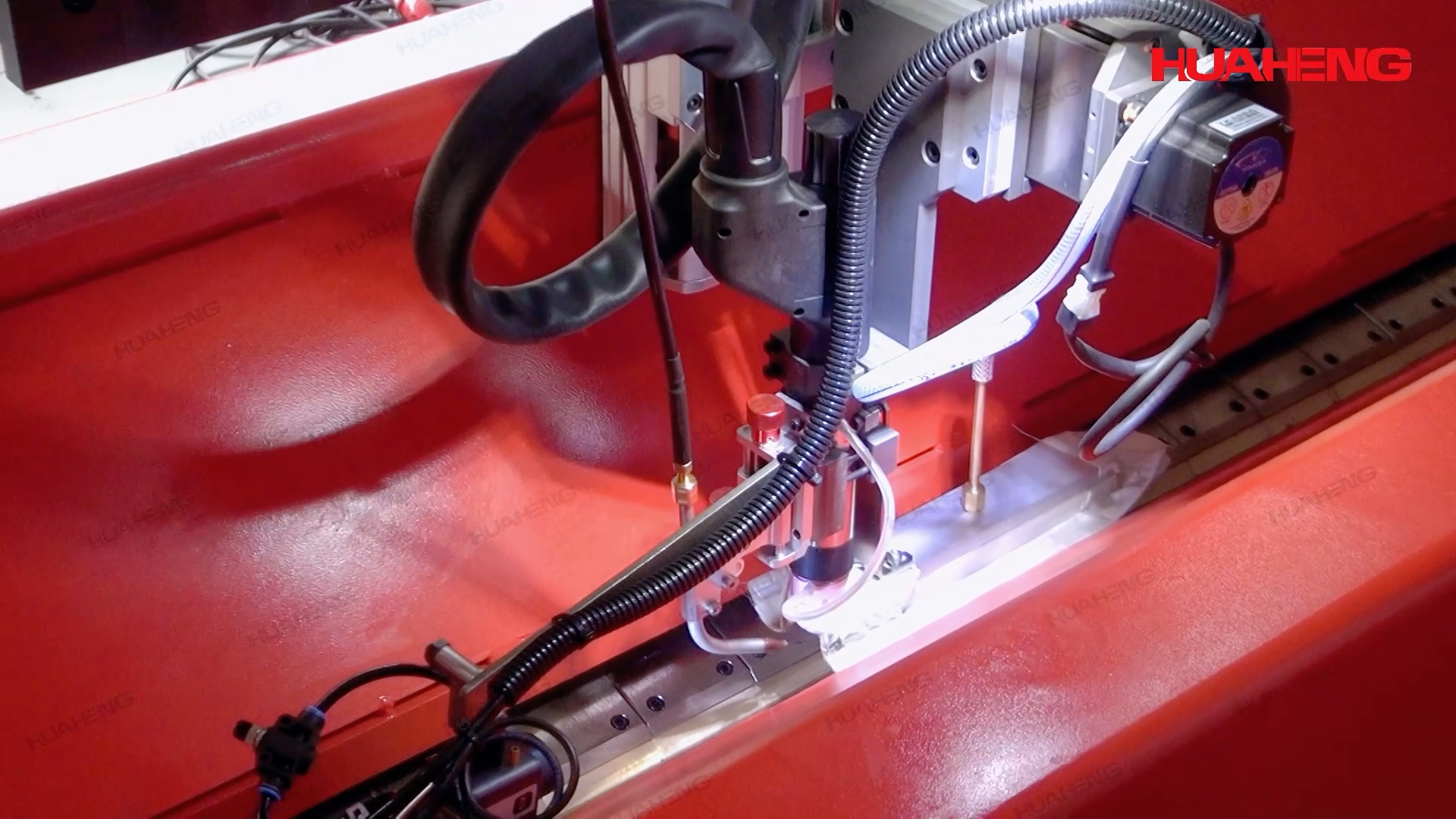

This equipment adopts the single-torch TIG welding process, and the welding torch is also equipped with the functions of OSC (Oscillation of Arc Length) and AVC (Arc Voltage Control for Arc Length Tracking). It comes with a high-definition welding monitoring system, which can make real-time fine adjustments to the welding speed and control the dynamics of the welding torch. It has greatly enhanced the accuracy and stability of welding, thereby improving the efficiency of welding production and the quality of welded products.

Product Tags:

Longitudinal Seam Automatic Welding Machine

HL3000-TIG Automatic Welding Machine

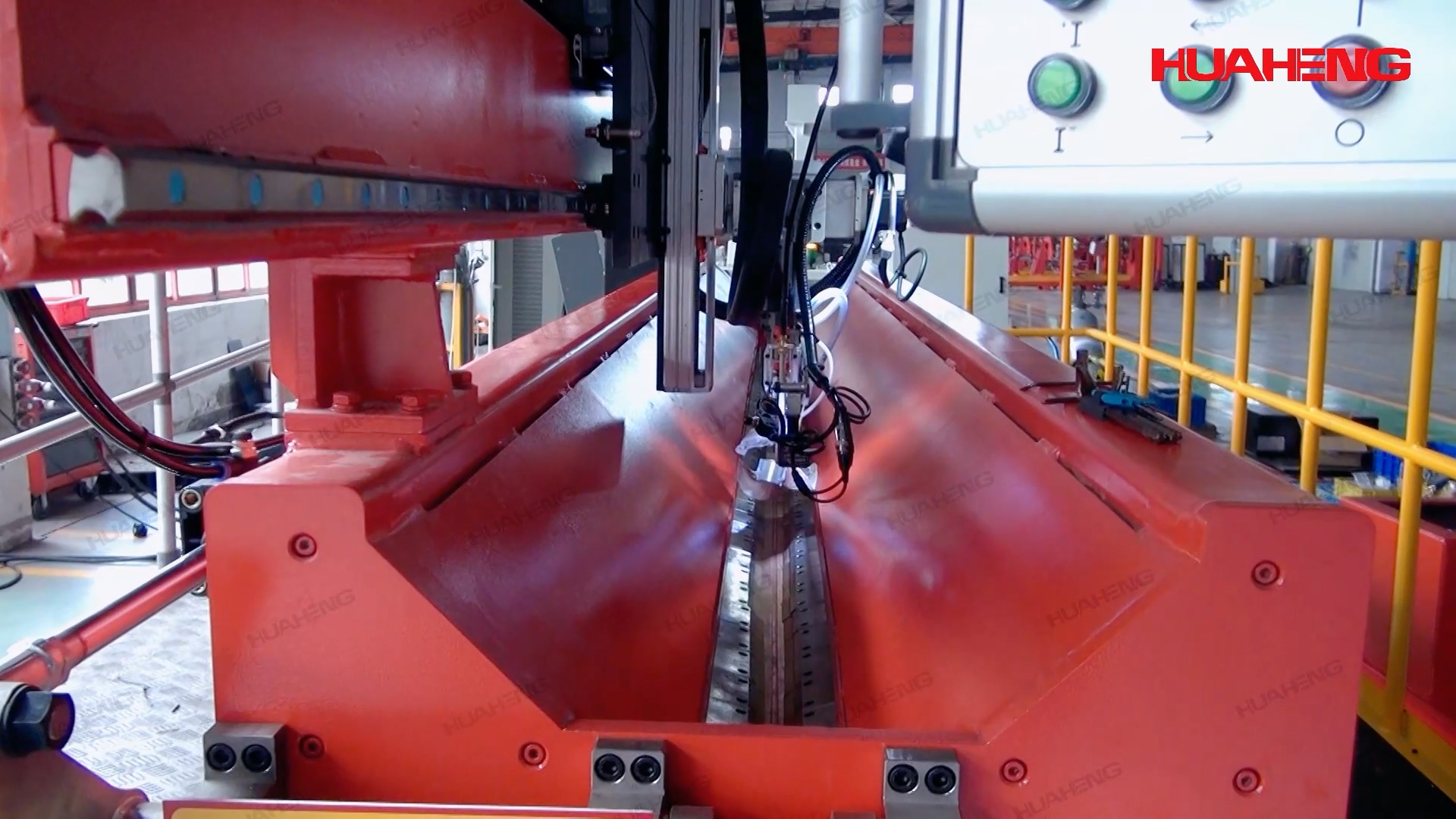

HL3000-TIG Longitudinal Seam Automatic Welding Machine For Medium and Thin-walled Cylinders Images
